Domain name system (DNS) is the protocol that translates human-friendly URLs, such as securitytut.com, into IP addresses, such as 183.33.24.13. Because DNS messages are only used as the beginning of each communication and they are not intended for data transfer, many organizations do not monitor their DNS traffic for malicious activity. As a result, DNS-based attacks can be effective if launched against their networks. DNS tunneling is one such attack.

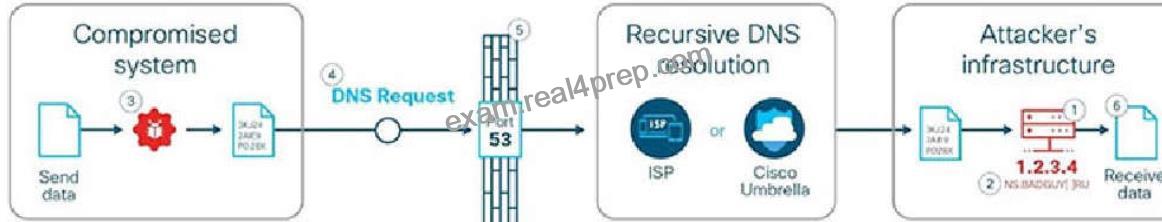

An example of DNS Tunneling is shown below:

The attacker incorporates one of many open-source DNS tunneling kits into an authoritative DNS nameserver (NS) and malicious payload.
2. An IP address (e.g. 1.2.3.4) is allocated from the attacker’s infrastructure and a domain name (e.g. attackerdomain.com) is registered or reused. The registrar informs the top-level domain (.com) nameservers to refer requests for attackerdomain.com to ns.attackerdomain.com, which has a DNS record mapped to 1.2.3.4
3. The attacker compromises a system with the malicious payload. Once the desired data is obtained, the payload encodes the data as a series of 32 characters (0-9, A-Z) broken into short strings (3KJ242AIE9, P028X977W,…).
4. The payload initiates thousands of unique DNS record requests to the attacker’s domain with each string as a part of the domain name (e.g. 3KJ242AIE9.attackerdomain.com). Depending on the attacker’s patience and stealth, requests can be spaced out over days or months to avoid suspicious network activity.
5. The requests are forwarded to a recursive DNS resolver. During resolution, the requests are sent to the attacker’s authoritative DNS nameserver,
6. The tunneling kit parses the encoded strings and rebuilds the exfiltrated data.

Explanation

Many enterprises prefer to deploy development workloads in the public cloud, primarily for convenience and faster deployment. This approach can cause concern for IT administrators, who must control the flow of IT traffic and spending and help ensure the security of data and intellectual property. Without the proper controls, data and intellectual property can escape this oversight. The Cisco Intercloud Fabric solution helps control this shadow IT, discovering resources deployed in the public cloud outside IT control and placing these resources under Cisco Intercloud Fabric control. Cisco Intercloud Fabric addresses the cloud deployment requirements appropriate for two hybrid cloud deployment models: Enterprise Managed (an enterprise manages its own cloud environments) and Service Provider Managed (the service provider administers and controls all cloud resources). Reference: https://www.cisco.com/c/en/us/td/docs/solutions/Hybrid_Cloud/Intercloud/Intercloud_Fabric.pdf The Cisco Intercloud Fabric architecture provides two product configurations to address the following two consumption models: + Cisco Intercloud Fabric for Business + Cisco Intercloud Fabric for Providers Reference: https://www.cisco.com/c/en/us/td/docs/solutions/Hybrid_Cloud/Intercloud/Intercloud_Fabric/ Intercloud_Fabric_2.html

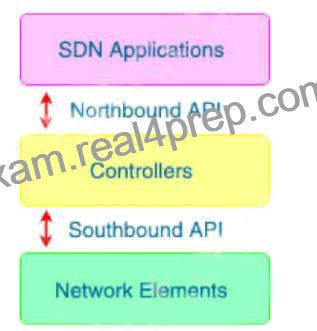

The Southbound API is used to communicate between Controllers and network devices.

The Cisco Web Security Appliance (WSA) includes a web proxy, a threat analytics engine, antimalware engine, policy management, and reporting in a single physical or virtual appliance. The main use of the Cisco WSA is to protect users from accessing malicious websites and being infected by malware.
You can deploy the Cisco WSA in two different modes:
– Explicit forward mode
– Transparent mode
In explicit forward mode, the client is configured to explicitly use the proxy, subsequently sending all web traffic to the proxy. Because the client knows there is a proxy and sends all traffic to the proxy in explicit forward mode, the client does not perform a DNS lookup of the domain before requesting the URL. The Cisco WSA is responsible for DNS resolution, as well.
When you configure the Cisco WSA in explicit mode, you do not need to configure any other network infrastructure devices to redirect client requests to the Cisco WSA. However, you must configure each client to send traffic to the Cisco WSA. -> Therefore in explicit mode, WSA only checks the traffic between client & web server. WSA does not use its own IP address to request -> Answer B is not correct. When the Cisco WSA is in transparent mode, clients do not know there is a proxy deployed. Network infrastructure devices are configured to forward traffic to the Cisco WSA. In transparent mode deployments, network infrastructure devices redirect web traffic to the proxy. Web traffic redirection can be done using policybased routing (PBR)-available on many routers -or using Cisco’s Web Cache Communication Protocol (WCCP) on Cisco ASA, Cisco routers, or switches. The Web Cache Communication Protocol (WCCP), developed by Cisco Systems, specifies interactions between one or more switches) and one or more web-caches. The purpose of the interaction is to establish and maintain the transparent redirectio of traffic flowing through a group of routers. Reference: https://www.cisco.com/c/en/us/tech/content-networking/web-cache-communications-protocol-wccp/index.html ->Therefore answer D is correct as redirection can be done on Layer 3 device only. In transparent mode, the client is unaware its traffic is being sent to a proxy (Cisco WSA) and, as a result, the client uses DNS to resolve the domain name in the URL and send the web request destined for the web server (not the proxy). When you configure the Cisco WSA in transparent mode, you need to identify a network choke point with a redirection device (a Cisco ASA) to redirect traffic to the proxy.
infrastructure devices to redirect client requests to the Cisco WSA. However, you must configure each client to send traffic to the Cisco WSA.
-> Therefore in explicit mode, WSA only checks the traffic between client & web server. WSA does not use its own IP address to request -> Answer B is not correct.
When the Cisco WSA is in transparent mode, clients do not know there is a proxy deployed. Network infrastructure devices are configured to forward traffic to the Cisco WSA. In transparent mode deployments, network infrastructure devices redirect web traffic to the proxy. Web traffic redirection can be done using policybased routing (PBR)-available on many routers -or using Cisco’s Web Cache Communication Protocol (WCCP) on Cisco ASA, Cisco routers, or switches.
The Web Cache Communication Protocol (WCCP), developed by Cisco Systems, specifies interactions between one or more switches) and one or more web-caches. The purpose of the interaction is to establish and maintain the transparent redirectio of traffic flowing through a group of routers.
Reference:
->Therefore answer D is correct as redirection can be done on Layer 3 device only.
When you configure the Cisco WSA in explicit mode, you do not need to configure any other network infrastructure devices to redirect client requests to the Cisco WSA. However, you must configure each client to send traffic to the Cisco WSA. -> Therefore in explicit mode, WSA only checks the traffic between client & web server. WSA does not use its own IP address to request -> Answer B is not correct. When the Cisco WSA is in transparent mode, clients do not know there is a proxy deployed. Network infrastructure devices are configured to forward traffic to the Cisco WSA. In transparent mode deployments, network infrastructure devices redirect web traffic to the proxy. Web traffic redirection can be done using policybased routing (PBR)-available on many routers -or using Cisco’s Web Cache Communication Protocol (WCCP) on Cisco ASA, Cisco routers, or switches. The Web Cache Communication Protocol (WCCP), developed by Cisco Systems, specifies interactions between one or more switches) and one or more web-caches. The purpose of the interaction is to establish and maintain the transparent redirectio of traffic flowing through a group of routers. Reference: https://www.cisco.com/c/en/us/tech/content-networking/web-cache-communications-protocol-wccp/index.html ->Therefore answer D is correct as redirection can be done on Layer 3 device only. In transparent mode, the client is unaware its traffic is being sent to a proxy (Cisco WSA) and, as a result, the client uses DNS to resolve the domain name in the URL and send the web request destined for the web server (not the proxy). When you configure the Cisco WSA in transparent mode, you need to identify a network choke point with a redirection device (a Cisco ASA) to redirect traffic to the proxy.
WSA in Transparent mode
-> Therefore in Transparent mode, WSA uses its own IP address to initiate a new connection the Web Server (in step 4 above) -> Answer E is correct.
Answer C is surely not correct as WSA cannot be configured in a web browser in either mode.
Answer A seems to be correct but it is not. This answer is correct if it states “When the Cisco WSA is running in transparent mode, it uses the WSA’s own IP address as the HTTP request source” (not destination).

Cisco Firepower deployments can take advantage of platform settings policies. A platform settings policy is a shared set of features or parameters that define the aspects of a managed device that are likely to be similar to other managed devices in your deployment, such as time settings and external authentication. Examples of these platform settings policies are time and date settings, external authentication, and other common administrative features.
A shared policy makes it possible to configure multiple managed devices at once, which provides consistency in your deployment and streamlines your management efforts. Any changes to a platform settings policy affects all the managed devices where you applied the policy. Even if you want different settings per device, you must create a shared policy and apply it to the desired device.
For example, your organization’s security policies may require that your appliances have a “No Unauthorized Use” message when a user logs in. With platform settings, you can set the login banner once in a platform settings policy.
Reference:
Therefore the answer should be “Platform Settings Policy”, not “Platform Service Policy” but it is the best answer here so we have to choose it.

Easy Connect simplifies network access control and segmentation by allowing the assignment of Security Group Tags to endpoints without requiring 802.1X on those endpoints, whether using wired or wireless connectivity.

The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide the following major functions:
…
– Delays the export of flow-create events.
The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide the following major functions:
…
– Delays the export of flow-create events.
Reference:
The ASA and ASASM implementations of NetFlow Secure Event Logging (NSEL) provide the following major functions:
…
– Delays the export of flow-create events.

A trusted CA is the only entity that can issue trusted digital certificates. This is extremely important because while PKI manages more of the encryption side of these certificates, authentication is vital to understanding which entities own what keys. Without a trusted CA, anyone can issue their own keys, authentication goes out the window and chaos ensues.
A trusted CA is the only entity that can issue trusted digital certificates. This is extremely important because while PKI manages more of the encryption side of these certificates, authentication is vital to understanding which entities own what keys. Without a trusted CA, anyone can issue their own keys, authentication goes out the window and chaos ensues.
Reference:
A trusted CA is the only entity that can issue trusted digital certificates. This is extremely important because while PKI manages more of the encryption side of these certificates, authentication is vital to understanding which entities own what keys. Without a trusted CA, anyone can issue their own keys, authentication goes out the window and chaos ensues.
