Q230. A network engineer has been tasked with designing a network for a new branch office with approximately 50 network devices. This branch office will connect to the other offices via a MAN.
Many of the other branch offices use off-the-shelf SOHO equipment. It is a requirement that the routing protocol chosen use the least amount of overhead. Additionally, all computers on the network will be part of a single VLAN. The connection between these computers should produce the highest throughput possible, in the most cost effective manner. Which of the following devices would be MOST appropriate?

Q231. A network technician is upgrading a router’s firmware. After downloading the file, the technician is instructed to run one of the commands below, obtain the output, and compare it with a value found on the vendor’s website. The commands are as follows:

Which of the following procedures was the technician instructed to perform/

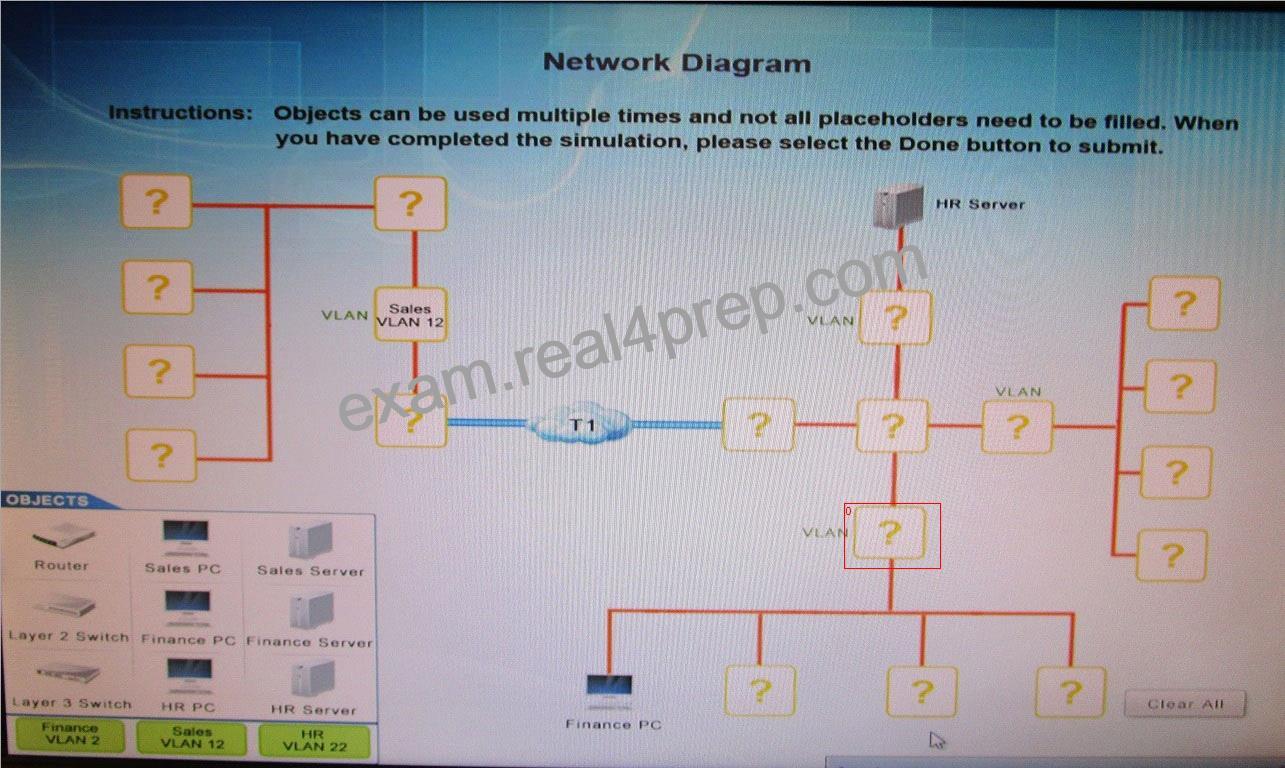

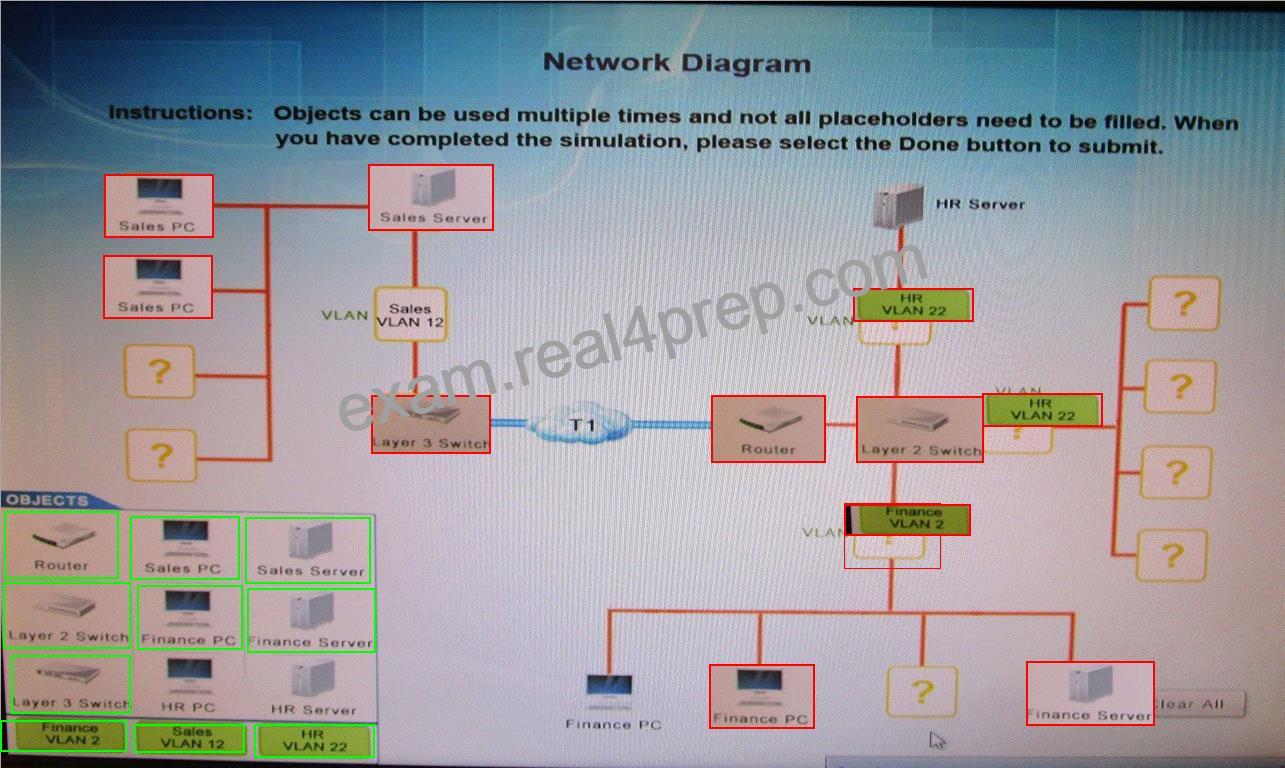

Q232. You are tasked with creating a network that will accomplish the following requirements Requirements:
1) The remote sales team must be able to connect to the corporate network
2) Each department must have ONLY two PCs and a server
3) Each department must be segmented from each other
4) The following VLANs have been designated:
a) VLAN 2- Finance
b) VLAN 12- Sales
c) VLAN 22- Human Resources (HR)
Complete the network by dragging the required objects into the diagram
INSTRUCTIONS: Objects can be used multiple times and not all placeholders need to be filled

Q233. A technician attempts to replace a switch with a new one of similar model from the same vendor. When the
technician moves the fiber and SFP plug, the switch does not completely boot up. Considering that the
config files are the same, which of the following is the MOST likely cause of the failure?

Q234. A bookstore uses a Faraday cage to comply with credit card regulations. Customers report that their cellular phones have no signal when they are in the bookstore. Which of the following is the MOST likely cause?

Q235. A network administrator configures an email server to use secure protocols. When the upgrade is completed, which of the following ports on the firewall should be configured to allow for connectivity? (Choose three.)

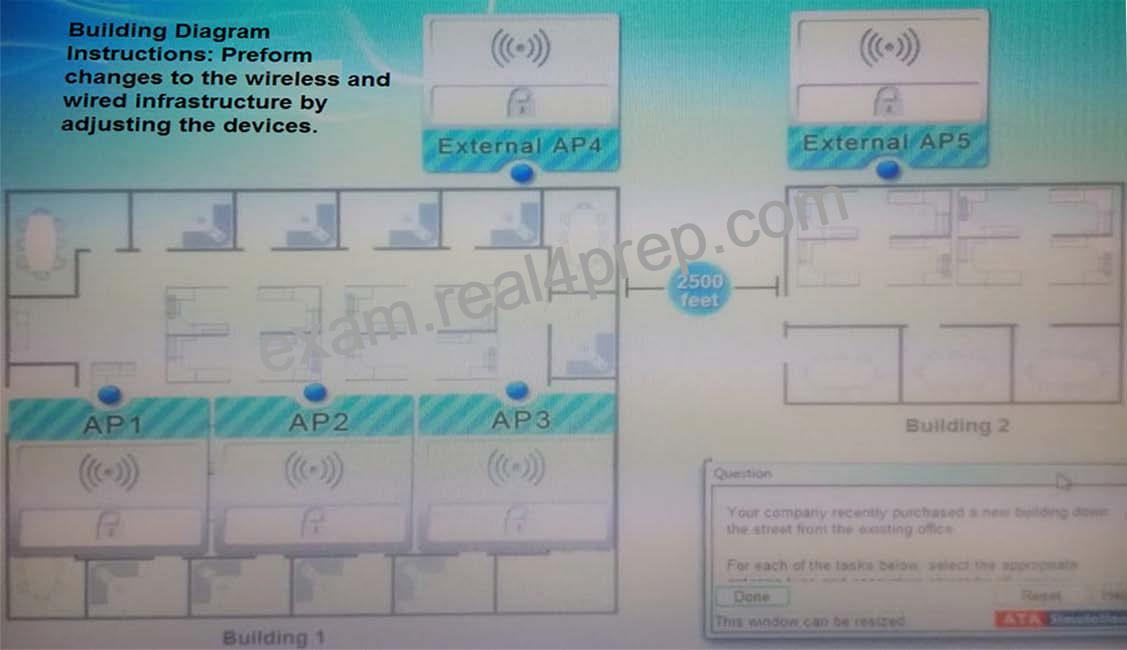

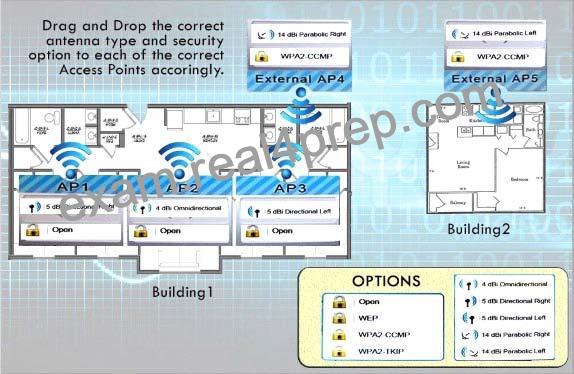

Q236. Your company recently purchased a new building down the street from the existing office. For each of the tasks below, select the appropriate antenna type and encryption object for all wireless access point (AP).
1. Create an encrypted wireless connection between the two buildings that BEST controls signal propagation, while maximizing security.
2. Restrict the wireless signal generated by the access points (APs) inside Building 1, so that it minimizes broadcast beyond the building.
3. Maximize wireless coverage inside Building 1.
4. Building 1’s internal wireless network is for visitors only and must not require any special configuration on the visitor’s device to connect.

Instructions: When you have completed the simulation, select the Done button to submit.

Q237. A human resources manager notifies the IT manager the night before an employee will be terminated so the employee’s access rights can be removed. Which of the following policies is being exercised?

Q238. The engineering department wants to bring a legacy computer online to test a failed component. When patching the device into the switch, there are no link lights or connectivity. The legacy computer can ping its loopback address successfully. Another device can connect to that same port without issues. Which of the following should the network technician check NEXT? (Choose two.)

Q239. A network technician has discovered a rogue access point under an empty cubicle desk. Which of the following should the technician perform to ensure another cannot be placed on the network?

Q240. Which of the following should a network administrator deploy to control all preventive security measures?

Q241. Which of the following protocols is used to securely connect to a multi-layer switch?

Q242. An employee, who Is using a laptop connected to the wireless network. Is able to connect to the Internet but not to internal company resources. A systems administrator reviews the following information from the laptop:

The administrator was expecting to see a network address within 10.100.0.0/23. which is consistent with the company’s wireless network. The network administrator verifies the company’s wireless network is configured and working properly. Which of the following is the MOST likely cause of this issue?

Q243. A network technician is coordinating the upgrade of the company’s WAP firmware with all the remote locations.
The company has occasionally experienced errors when transferring large files to some of the remote offices.
Which of the following should be used to ensure files arrive without modifications?

Q244. A network technician is reviewing the following output from a router:

Which of the following is this an example of?

Q245. Joe, an employee at a large regional bank, wants to receive company email on his personal smartphone and table: To authenticate on the mail server, he must first a custom security application on those mobile services.
Which of the following policies would BEST enforce this requirement?

Q246. Various hypervisor guests are configured to use different VLANs in the same virtualization environment through which of the following?

Q247. Which of the following is a system of notation that uses base 16 rather than base 10?

Q248. A technician needs to ensure green space wireless coverage. The antenna is being installed in the middle of the field. Which of the following antenna types should be installed to ensure maximum coverage?

Q249. An administrator has added four switches to a campus network. The switch in wiring closet A is only connected to the switch in wiring closet C.
The switch in wiring closet B is connected to the switch in wiring closet C as well as wiring closet D.
The switch in wiring closet D is only connected to the switch in wiring closet B.
Which of the following topologies is represented in this design?

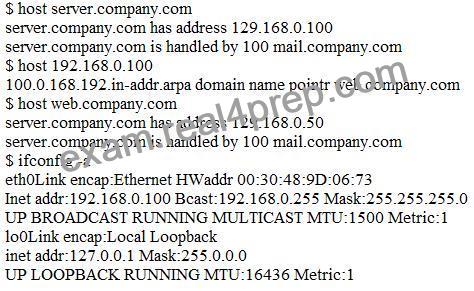

Q250. A system administrator receives report from users of odd behavior in regard to recently installed server. While reviewing the server network configuration, the systems administrator does both a forward and a reverse DNS lookup on the host, along with the network adapter configuration.

Which of the following is the problem identified in the output above?

Q251. A technician needs to order cable that meets 10GBaseT and safety requirements for an installation between a drop ceiling and a standard ceiling.
Which of the following should the technician order to ensure compliance with the requirements?

Q252. Which of the following protocols is used during web browsing to resolve website names?
