NEW QUESTION 44
Choose the correct answer
In a state machine which behavior can be interrupted by a transition which leaves the current state?

a do behavior

an entry behavior

an exit behavior

the effect of an internal transition

NEW QUESTION 45
Choose the correct answer
What is a flow port that is typed by a flow specification said to be?

atomic

nonatomic

delegation

behavioral

conjugated

directionless

NEW QUESTION 46
Choose the correct answer.
What is the relationship between objective functions and measures of effectiveness (MOEs)?

An objective function is usually a function of only one MOE.

An objective function is usually a function of several different MOEs

An MOE is usually composed of only one objective function.

An MOF is usually composed of several different objective functions

NEW QUESTION 47
Choose the correct answer
What is an efficient way to represent highly reused patterns of interaction on sequence diagrams?

an Interaction use referencing an interaction defined on a separate sequence diagram

an interaction template construct that is instantiated from the referring sequence diagram

the call interaction operator with an operand referring to the reusable Interaction defined elsewhere

an activation on the referring sequence diagram allocated to another activation on the referenced diagram

NEW QUESTION 48
Choose the correct answer
Annex C of the SysML specification describes optional stereotypes that are useful for modeling requirements.
Which stereotype are all the other stereotypes based upon, and which properties does it add to a requirement?

<designConstraint>, which adds a mandatory constraintProperty

<emanagedRequirement>, which adds properties for owner and changeAuthority

<extendedRequirement>, which adds properties for source, risk, and verifyMethod

<penformanceRequirement>. which adds properties for performanceMeasure and performance MeasureKind

<synched Requirement>, which adds properties for lastSynch. version, and corresponding ID in the requirements management tool

NEW QUESTION 49
Choose the correct answer

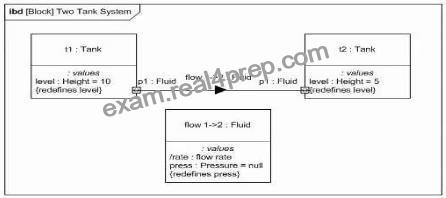

A system consists of two identical tanks each containing a different level of fluid. The tanks are connected together by a port at the bottom of each tank. This system is modeled m the following diagram:

Which statement is true?

The block Fluid, which types item property flow 1 ->2. has a value property press : Pressure with a default value of null

The value property /rate : flow rate is a derived property, which accommodates calculating its value based on oilier properties

Parts t1 and t2 each use part instances to redefine the value of property level : Height

The value of /rate for item property flow 1->2 is positive for flow from t1 to t2. and negative for How in the other direction

Both port p1 on pan t1. and port p1 on t2. must have values defined for value properties /rate and press

NEW QUESTION 50
Choose the correct answer.

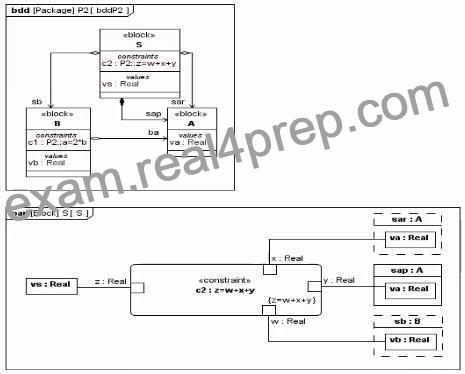

Given the following block structure model:

What is the value of S1.vs when the parametric models are executed for the following instance?

There is no value – the instance model is invalid

NEW QUESTION 51
Choose the correct answer
How ate use cases and requirements used for requirements analysis in SysML?

in a SysML model, either use cases or requirements are modeled, but never both

Use cases are a relic from UML and are. strictly speaking, useless in a SysML model

Use cases are good for capturing functional requirements. For nonfunctional requirements, the requirement element is needed

Use cases are the basis for all requirements in a model. Requirements refine the use cases by adding additional information through then properties.

NEW QUESTION 52
Choose the correct answer.
Which stereotype depicts that an object node will replace existing tokens with newly arriving tokens when the specified upper limit is reached?

No stereotype is needed in this case since it describes the default condition

NEW QUESTION 53
Choose the correct answer.
Given the following diagram:

What is the order of Interactions?

Message a1 overtakes message m1, which is processed after receipt of a1.

Message a1 overtakes messages m1 and m2 and is processed before them.

Message m1 overtakes message a1, which is processed after receipt of m2.

Message m1 overtakes messages a1 and m2 and is processed before them.

NEW QUESTION 54
Choose the correct answer.
Which SysML construct specifies a probability distribution to the values of a property such as a basic interval distribution between min and max?

a range property

an interval property

a probability property

a distributed property

NEW QUESTION 55
Choose the correct answer.

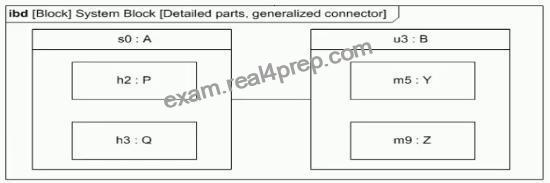

Given the following diagram:

What needs to be determined in order to model the connection between components s0 and u3 in more detail?

whether component s0 subclasses component u3

which parts of each component participate in the connection

which parts of each component participate in a reference association

whether any part that belongs to component s0 subclasses a pan that belongs to component u3

NEW QUESTION 56
Choose the correct answer
What is a ‘control operator’?

it is an activity that can output control tokens via a parameter node.

It Is the general term for any element of an activity that can handle control tokens.

It Is a special kind of activity node that can be used to control the flow of tokens into an activity.

It Is an activity node that allows a modeler to specify the use of mathematical operators such as plus minus, multiply, or divide.

NEW QUESTION 57
Choose the correct answer.

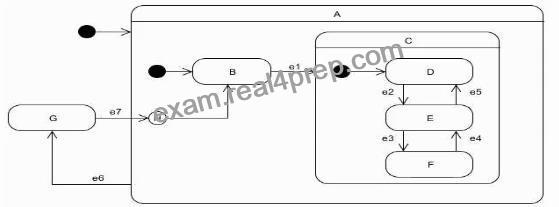

Given the following state machine, and assuming that it starts from initialization:

Which option is the shortest sequence of events that will cause the machine to be in state E?

e1, e2, e6, e7

e1, e2, e6, e7, e1

e1, e2, e6, e7, e2

e1, e2, e3, e6, e7, e2

e1, e2, e3, e3, e6, e7, e1, e2

NEW QUESTION 58
Choose the correct answer.

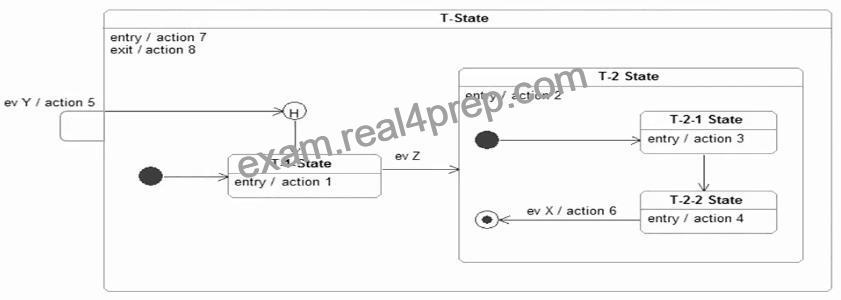

Assume the following state machine is In the T-1 State when ev Z occurs:

Subsequently ev Voccurs.
Which sequence of actions will be executed?

action 2

action 2 action 3

action 2 action 4

action 3

action 4

action 5 action 2 action 3

action 5 action 2 action 4

action 5 action 1 action 2 action 3

action 5 action 1 action 2 action4

action 8 action 5 action 7 action 2 action 3

action 8 action 5 action 7 action 2 action 3 action 4

action 8 action 5 action 7 action 2 action 4

NEW QUESTION 59
Choose the correct answer.
How should a generalization set between Shape (superclass) and subclasses Polygon. Rectangle and Triangle be marked?

{complete, disjoint{

{incomplete, disjoint}

{complete, overlapping}

{incomplete, overlapping{

NEW QUESTION 60
Choose the correct answer.
Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.
Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NEW QUESTION 61
Choose the correct answer
Which diagram fragment validly depicts adding properties to a stereotype?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NEW QUESTION 62
Choose the correct answer.

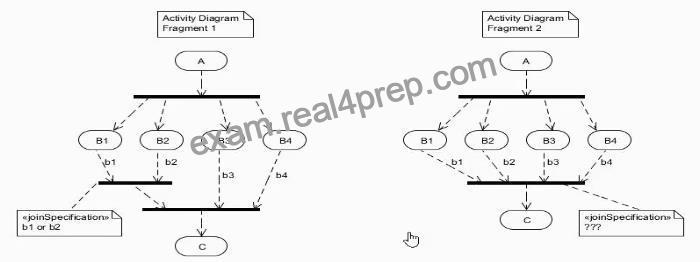

Consider the following two activity diagram fragments labeled Fragment 1 and Fragment 2. The JoinSpecification for Fragment 1 is completely specified, but the JoinSpecification for Fragment 2 is not.

Which join specification for Fragment 2 will make it exhibit the same behavior as fragment 1? Assume that activities with the same names exhibit the same behavior

b1 or b2 or b3 or b4

(b1 or b?) and (b3 or b4)

(b1 or b2) and b3 and b4

The question cannot be answered because Activity Diagram Fragment 1 is ambiguous

NEW QUESTION 63
Choose the correct answer.
What are the possible values of the enumeration ControlValue?

suspend and resume

enable and disable

suspend, resume, enable and disable

It has no values, but is intended for a modeler to extend with their own control values.

NEW QUESTION 64
Choose the correct answer.
A system engineer specializing in rigid body dynamics wants to model the laws of motion (LOM) so that they may be reused to analyze different types of systems. The LOM consist of the mathematical relations R1 and R2. shown here.
(R1)s=ut + (1/2)at2
(R2) v = u + at
How should the system engineer represent and relate LOM. R1, and R2 in SysML?

Create a block for each of LOM. R1 and R? Then create part properties in LOM that are typed by R1 and R?

Create an activity for each of LOM. R1, and R2. Then, create actions in LOM that are typed by R1 and R2.

Create a constraint block for each of LOM. R1. and R2 Then, create part properties in LOM that are typed by R1 and R2.

Create a constraint block for each of LOM. R1, and R2- Then, create constraint properties m LOM that are typed by R1 and R2.

NEW QUESTION 65
Choose the correct answer
How can the containment relationship be used to relate requirements?

Packages may represent specifications, which can be contained m other specifications

Containment allows a requirement to be decomposed by containing sub-requirements. Packages can also contain requirements

Requirements can contain packages, which in turn can contain other requirements. This is how hierarchical specifications can be represented in SysML

Requirements cannot use containment. They cannot contain any other model elements.

NEW QUESTION 66
Choose the correct answer
Which SysML construct is used in an activity diagram to associate an actor of a use case with the actions that actor performs?

an activity partition enclosing the actions the actor performs

an action allocation of the actor to the actions that actor performs

an association Between the actor and the actions that actor performs

an object node to represent the actor and object flows tying that actor to the actions it performs

NEW QUESTION 67
Choose the correct answer.
Given the following state machine fragment.

if it starts in F-State and then the event evB is received, what is the subsequent state?

D-State

E-State

F-State

G-Stale

None: the diagram is ill-formed

NEW QUESTION 68
Choose the correct answer
What is an effective and efficient approach to project modeling standards and conventions?

Every project should create its own domain specific profile to describe modeling standards and conventions

Organizations should create specific modeling standards and conventions to ensure modeling consistency across projects

The SysML specification alone is sufficient to describe modeling standards and conventions when the modeling tool has a proper implementation of SysML

The SysML specification and the modeling tool documentation are sufficient to describe modeling standards and conventions
